Motor Bracket

Wheelchair Motor Bracket Kit

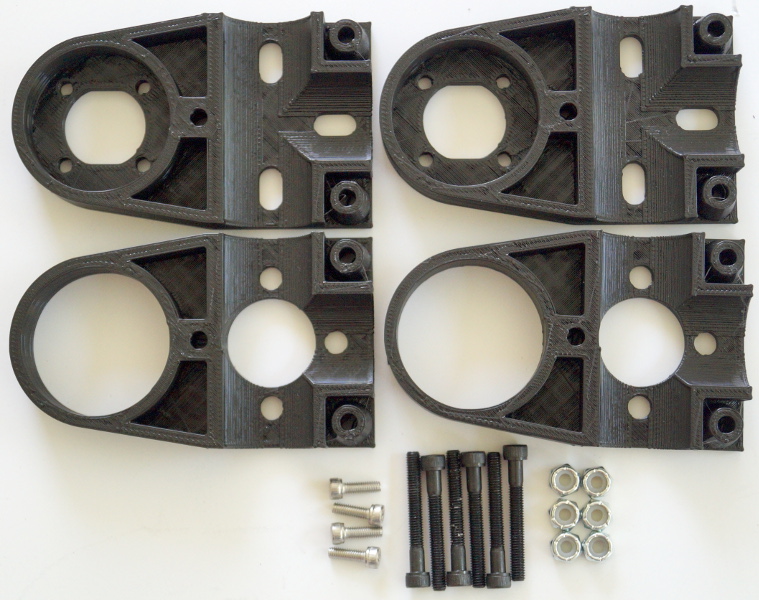

Figure 1. Motor bracket contents includes 2 motor bracket sets, with screws and nuts.

The motor brackets are used to mount the motors to the wheelchair frame. Each set is composed of 2 halves which clamp onto a PVC A-Connector part. When you order this item you will receive 2 bracket sets with accompanying screws and nuts.

Set Contents
QuantityDescription
2Outer half of motor bracket
2Inner half of motor bracket
6#10-32 x 1.25 in socket cap screw
6#10-32 nylon lock nut
8M4 x10mm screw, for mounting motor to bracket


You can also download the .stl files and 3D print the parts yourself from this link: MotorBracket.zip

Ordering Info

Part Number Description Price Purchase
MOTOR-BRACKETS 2 motor mountaing bracket sets with screws and nuts. $14.95

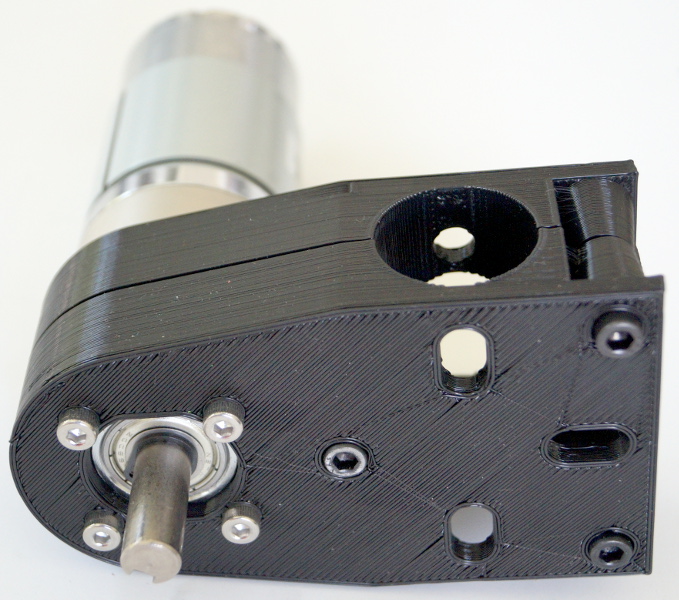

The following picture show a bracket mounted to a motor. (Motors are sold separately.) Wheelchair Motor Bracket Mounted to Motor
