45mm Planetary Gear Motor
$ErrorMsg
\n\r"); } ?>

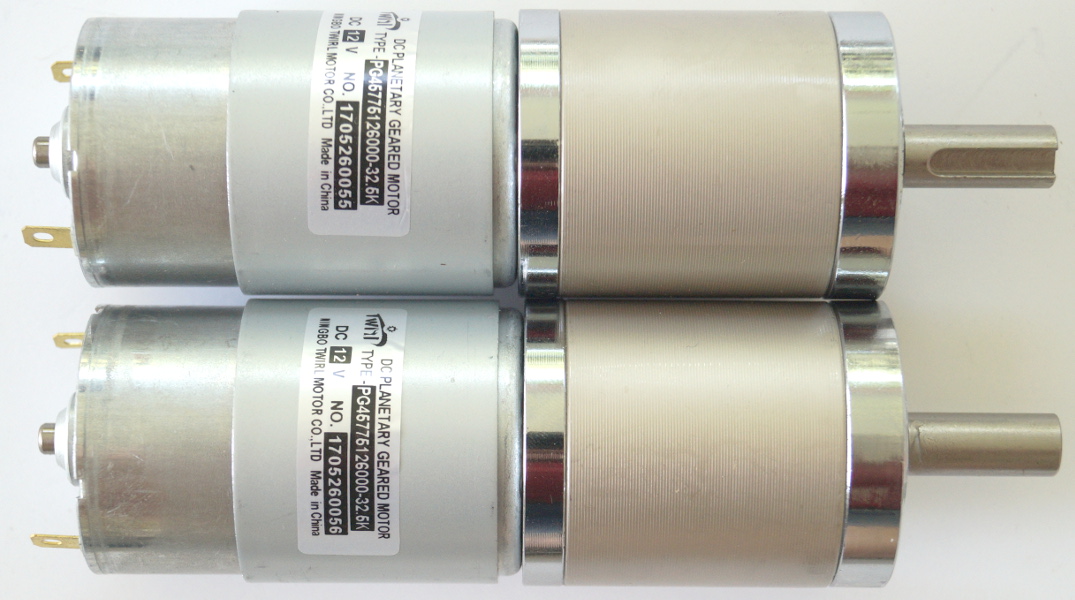

Figure 1. 45mm Planetary Gear Motor Pair
The wheelchair uses a pair of 12V 45mm planetary gear motors with a 10mm shaft diameter. These are produced by Twirl Motor in China - Part Number: PG45M775126000-32.5K. When you order this item you get a pair of 2 motors. The motors weight about 2 Lbs each, for a total of 4 Lbs (1.8kgs) for the pair.
| Motor Specification (No Gearbox) | |
|---|---|
| No Load Speed | 6000 RPM |
| No Load Current | 900mA |
| Full Load Speed | 4500 RPM |
| Full Load Current | 4A |
| Torque | 750 gf*cm |
| Stall Torque | 3000 (gf*cm) |
| Stall Current | 13A |
| Gearbox Specification | |
| Gearbox Reduction | 32.5 |
| Number of gear stages | 3 |
| Gearbox Length | 56.2 mm |
| Max Running Torque | 20 kgf*cm |
| Gear Efficiency | 73% |
| Motor With Gearbox Specification | |
| No Load Speed | 135 RPM (=6000/32.5*0.73) |
| Full Load Speed | 100 RPM (=4500/32.5*0.73) |
| Torque | 17.8kgf*cm (=750*32.5*0.73) |
Ordering Info
| Part Number | Description | Price | Purchase |
|---|---|---|---|
| GEAR-MOTOR-PAIR | Pair of 12V 45mm planetary gear head motors with 10mm shaft diameter | $59.95/pair |
